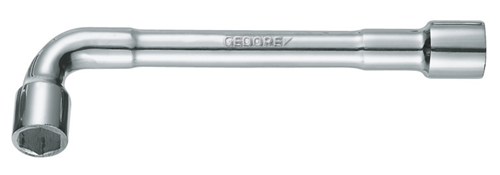

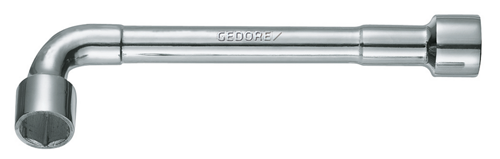

Double ended socket wrench with hole 10 mm

25 PK 10 / Code no. 1436813

Double ended socket wrench with hole 10 mm - 1436813 (1)

Double ended socket wrench with hole 10 mm - 1436813 (2)

Double ended socket wrench with hole 10 mm - 1436813 (3)

Double ended socket wrench with hole 10 mm - 1436813 (4)

Double ended socket wrench with hole 10 mm - 1436813 (1) (Thumbnail)

Double ended socket wrench with hole 10 mm - 1436813 (2) (Thumbnail)

Double ended socket wrench with hole 10 mm - 1436813 (3) (Thumbnail)

Double ended socket wrench with hole 10 mm - 1436813 (4) (Thumbnail)

Double ended socket wrench with hole 10 mm

25 PK 10 / Code no. 1436813

Price on request

BUY ONLINE Find A Dealer

Product line

EAN 4010886811931

Product description

Solid pattern with two hexagon heads
Deep bores above the hexagon heads to take long studs
On the angled side, the hole is exposed and can therefore also be used to accommodate a rotary pin (e.g. No. 26 D, please order separately)
Chromed
Chrome-plated, tips gun-metal finish

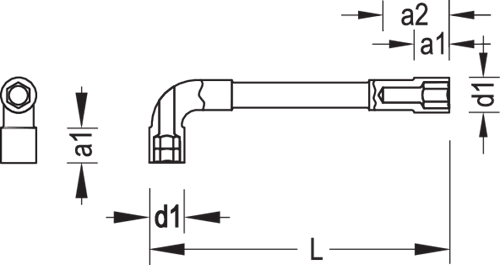

Dimensions and weights
- Total length [mm]: 130 mm
- Weight [kg]: 0,116 kg
Scope of delivery
- Contents (Qty of pieces): 1
Technical characteristics
- Tommy bar-Ø 1: 6,00 mm
- Insertion depth 1: 10,0 mm
- Insertion depth 2: 23,0 mm
- Recommended accessories: 26 D 6 Pivot pin 160 mm, Ø 6 mm
- Diameter of head 1: 15,5 mm
- Surface: chrome‑plated
- Width across flats 1 [mm]: 10
