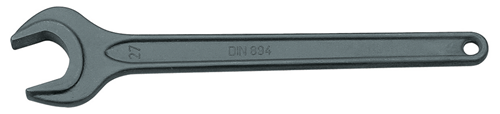

Single open ended spanner 15/16"
894 15/16AF
/ Code no. 6581030
Single open ended spanner 15/16"
894 15/16AF
/ Code no. 6581030
Price on request
Product line
EAN
4010886658109
Product description
- Acc. to DIN 894, ISO 3318
- Manganese phosphate finish up to 38 mm, steel-grey up from 41 mm
- Carefully forged and professionally machined:
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Jaw set at 15°
- Secure grip thanks to profile shaft - very ergonomic and handy
- Overloading indicated by deformation
- Size 10 - 135 mm with anging hole
- * not standardised
-

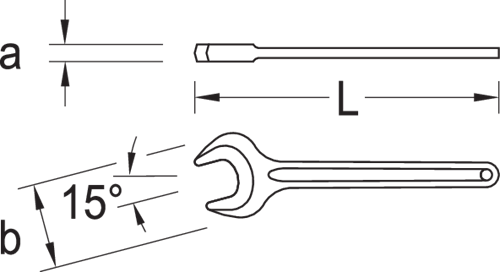

Dimensions and weights
- Total length [mm]: 217 mm
- Weight [kg]: 0,147 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Width of head 1 [mm]: 50,0 mm
- Head height 1 [mm]: 9 mm
- Material: Chrome‑vanadium steel 31CrV3
- Jaw set: 15 °
- Standard: DIN 894 ISO 3318
- Surface: manganese‑phosphated
- Width across flats 1 [AF]: 15/16"
