Double ring ratchet spanner 14x15 mm
4 R 14X15
/ Code no. 2306794
Double ring ratchet spanner 14x15 mm
4 R 14X15
/ Code no. 2306794
Price on request
Product line
EAN
4010886890356
Product description
- Flat pattern
- Thin walled rings
- UD-profile
- Return angle 7° to 14x15 mm, 6° 16x17 mm to 18x19 mm
- For ratchet loosening and fast tightening
- Vanadium steel 31CrV3
- Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated
- Hot forged
- Proven GEDORE technology newly combined: Waisted shaft of the No. 7 and the further developed mechanism of the U-20 ratchets
- In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet
-
Dimensions and weights
- Total length [mm]: 197 mm
- Weight [kg]: 0,14 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

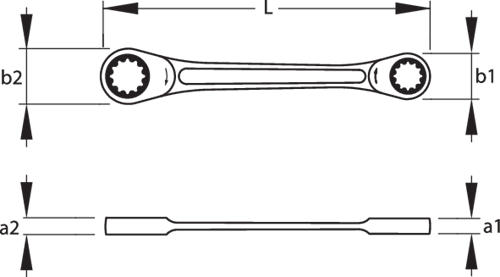

Technical characteristics
- Execution: flat design with thin‑walled rings
- Width of head 1 [mm]: 28,2 mm
- Width of head 2 [mm]: 29,5 mm
- Head height 1 [mm]: 9,4 mm
- Head height 2 [mm]: 9,8 mm
- Material: Chrome‑vanadium steel 31CrV3
- Surface: chrome‑plated
- Return angle: 7 °
- Width across flats [mm]: 14 x 15
- Width across flats 1 [mm]: 14
- Width across flats 2 [mm]: 15
