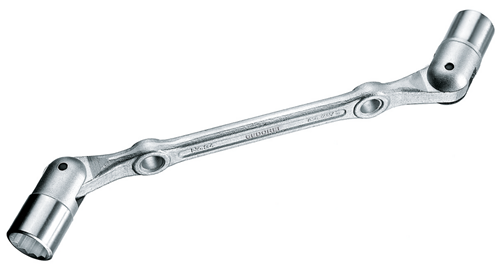

Swivel head wrench double ended UD-Profile 20x22 mm
34 20X22
/ Code no. 6300120
Swivel head wrench double ended UD-Profile 20x22 mm
34 20X22
/ Code no. 6300120
Price on request
Product line
EAN
4010886630013
Product description
- Thin walled heads, UD profile
- Swivels through a wide radius
- Shaft with holes for tommy bars 26 D and 26 RS (please order separately)
- Chrome-vanadium steel 31CrV3, chrome-plated
- Heads finely ground
-

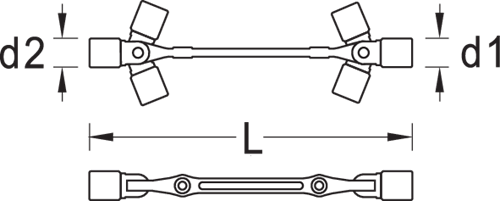

Dimensions and weights
- Total length [mm]: 350 mm
- Weight [kg]: 0,604 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Execution: with thin‑walled heads extra wide pivoting range shaft with holes for drive pins 26 D and 26 RS
- Bore Ø [mm]: 12 mm
- Diameter 1 [mm]: 28,0
- Insert-Ø 1: 28,0 mm
- Insert-Ø 2: 30,5 mm
- Recommended accessories: 26 D 12 Pivot pin 250 mm, Ø 12 mm 26 RS-626 S-3 Stepped pivot pin 330 mm, Ø 11.7 + 13.7 + 16 mm
- Material: Chrome‑vanadium steel 31CrV3
- Surface: chrome‑plated
- Ring profile: UNIT-DRIVE
- Width across flats [AF]: x
- Width across flats [mm]: 20 x 22
- Width across flats 1 [mm]: 20
- Width across flats 2 [mm]: 22
