Double-ended ring spanner straight UD profile 17x19 mm
4 17X19
/ Code no. 6054760
Double-ended ring spanner straight UD profile 17x19 mm
4 17X19
/ Code no. 6054760
Price on request
Product line
EAN
4010886605479
Product description
- Acc. to DIN 837 Form B, ISO 3318, ISO 1085
- Flat pattern
- Thin walled rings
- UD-profile
- Vanadium steel 31CrV3, chrome-plated
- * not standardised
-

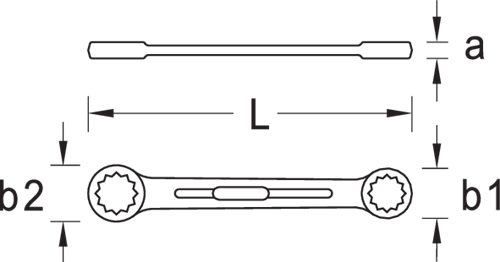

Dimensions and weights
- Total width [mm]: 27 mm
- Total height [mm]: 9 mm
- Total length [mm]: 185 mm
- Weight [kg]: 0,09 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Width of head 1 [mm]: 25,5 mm
- Width of head 2 [mm]: 28 mm
- Head height 1 [mm]: 8,5 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: ISO 3318 ISO 1085
- Surface: chrome‑plated
- Ring profile: UNIT-DRIVE
- Width across flats [mm]: 17x19
- Width across flats 1 [mm]: 17
- Width across flats 2 [mm]: 19
