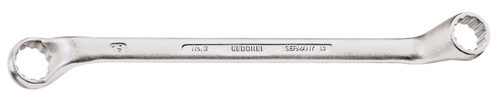

Double ended ring spanner UD-Profile 13x15 mm
2 13X15
/ Code no. 6016830
Double ended ring spanner UD-Profile 13x15 mm
2 13X15
/ Code no. 6016830
Price on request
Product line
EAN
4010886601686
Product description
- Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104
- Rings deep offset, strong but thin walls
- Vanadium steel 31CrV3, chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined:
- Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
-
Dimensions and weights
- Total width [mm]: 22 mm
- Total height [mm]: 30 mm
- Total length [mm]: 235 mm
- Weight [kg]: 0,16 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

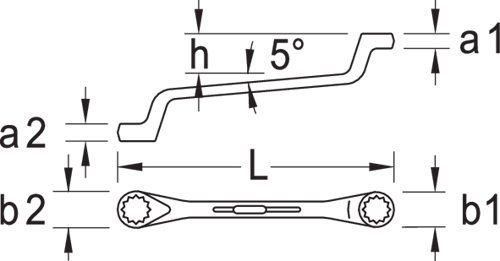

Technical characteristics
- Width of head 1 [mm]: 20,1 mm
- Width of head 2 [mm]: 23,1 mm
- Head height 1 [mm]: 10,3 mm
- Head height 2 [mm]: 11,3 mm
- Height of offset 1: 26,1 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 838 ISO 3310 ISO 1085 ISO 10104
- Surface: chrome‑plated
- Ring offset: 5°
- Ring profile: UNIT-DRIVE
- Width across flats [mm]: 13x15
- Width across flats 1 [mm]: 13
- Width across flats 2 [mm]: 15
