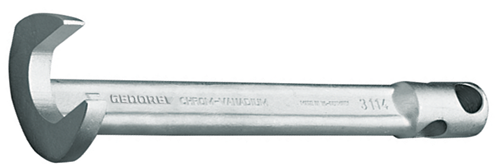

Crowfoot spanner 17 mm
3114 17
/ Code no. 6670210
Crowfoot spanner 17 mm
3114 17
/ Code no. 6670210
Price on request
Product line
EAN
4010886667026
Product description
- Angled open-end wrench for working in hard-to-reach areas
- Vanadium steel 31CrV3, chrome-plated
- No. 3114 = Delivery without pivot pin
- No. DS 3114 = supplied with rotary pin 26 D
-

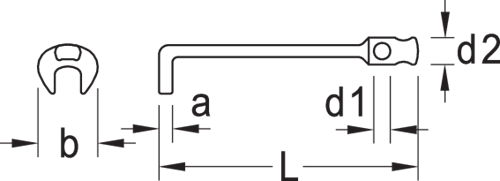

Dimensions and weights
- Total length [mm]: 200 mm
- Weight [kg]: 0,175 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Bore Ø [mm]: 11 mm
- Tommy bar-Ø 1: 10,00 mm
- Diameter 1 [mm]: 10,5
- Recommended accessories: 26 D 10 Pivot pin 200 mm, Ø 10 mm
- Width of head 1 [mm]: 33,0 mm
- Head height 1 [mm]: 6 mm
- Material: Chrome‑vanadium steel 31CrV3
- Surface: chrome‑plated
- Shaft diameter: 16,8 mm
- Width across flats 1 [mm]: 17
- Use: For working in extremely difficult to access areas
